Click-Fix Coping

Ali-Fabs Click-Fix metal coping is ideal for buildings under four storeys tall

The Click-Fix metal coping system is ideal for use on wall widths up to 450mm wide and is generally used on domestic installations and buildings below four storeys. Click-Fix is manufactured level to provide ease of use and flexibility for general builders and installers. The aluminium system comprises of a concealed ‘Click-Fix’ bracket, incorporating an EPDM seal to securely fix the coping. Complete system with fully fabricated fittings available Metal coping is a great choice for an economical and competitively priced metal coping system. With a simple clip-on fixing system, Click-Fix coping is the ideal solution for new and refurbished parapet and perimeter walls – it's available in standard shapes and sizes and is generally used for low rise buildings. We can also make bespoke and special coping profiles to suit any job, including curved copings, tricky angles and even a checker plate design.

Easy-to-Fit Coping

Click-Fix Coping is manufactured from aluminium sheet and specially extruded aluminium straps with a neoprene rubber seal. With a unique push and click design it is easy to install and totally weatherproof making it the ideal solution particularly for renovation projects and low-rise buildings.

Environmentally friendly

Aluminium is an environmentally friendly choice for wall coping, being 100% recyclable and the most abundant metal in nature. Over 90% of the aluminium we use in manufacturing is from recycled sources.

• Suitable for wall widths 100mm - 450mm
• Manufactured from 2mm thick marine grade aluminium
• Supplied complete with concealed Click-Fix bracket at 1000mm intervals
• High quality extruded aluminium Click-Fix bracket with slotted holes for height adjustment
• Double width jointer bracket with integral EPDM rubber seal for complete weatherproofing integrity of each joint
• Suitable for level installation, making all fittings universal for ease of installation (please note: There is a risk of ponding with flat copings)
• Suitable for new buildings and refurbishment applications
• Click-Fix fixing method with no visible fixings or penetration of the outside coping

Downloads for Aluminium Ali-Fabs Coping

If you would like technical advice or pricing information for this product, click on the button below for our contacts.

Download

Shape and Size Special profiles can be made e.g. vertical or with raked legs. Supplied in standard lengths of 3m. When specifying the total wall width including any finishes, rendering, asphalt or flashings must be given. Accessories Purpose made fittings are supplied for each installation and may include 60 degree and irregular corners, stop ends, upstands, T junctions and column caps. All are mitred and welded to suit (welds left undressed as standard). Special fittings for structural movement joints can also be supplied.

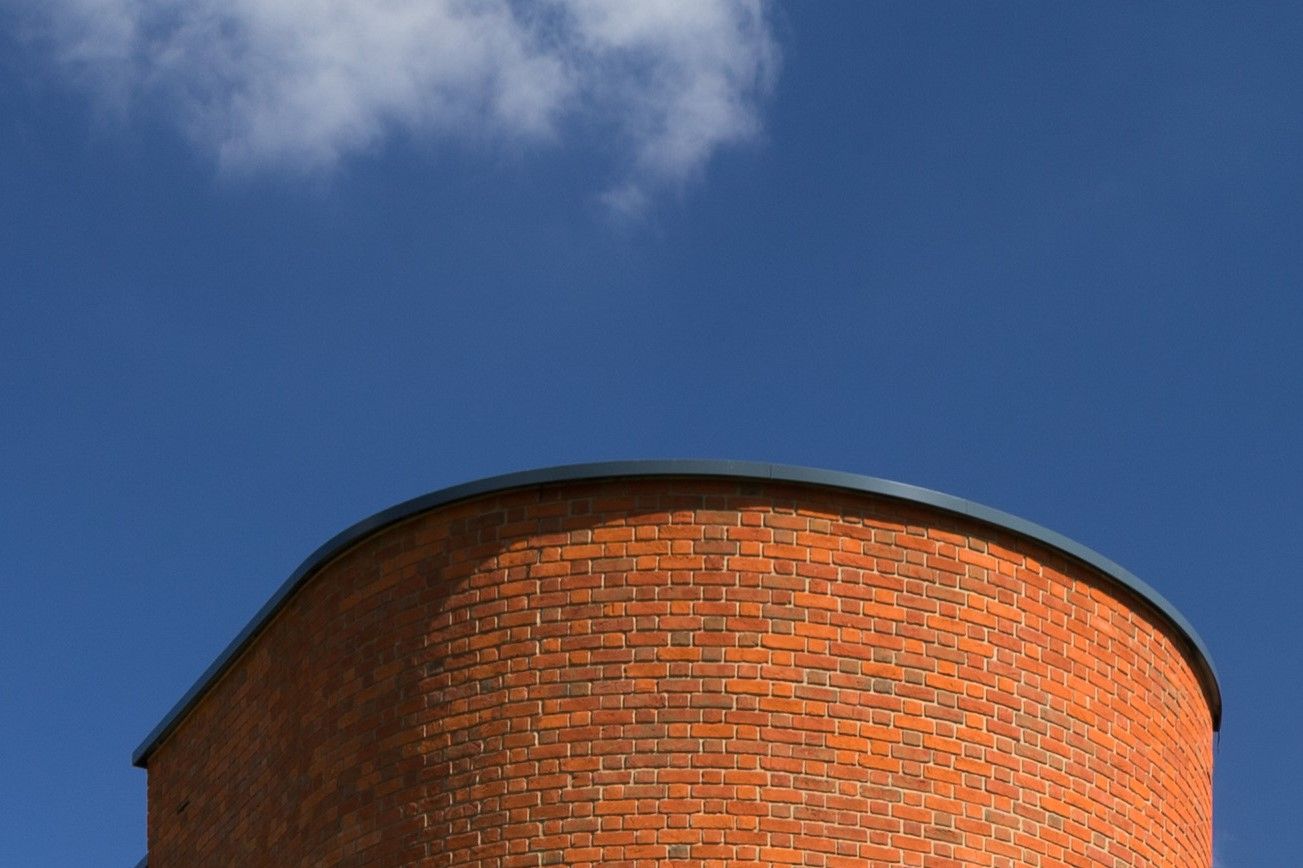

Curved or Radius Coping

We specialise in curved coping. If your project requires curved or radius coping we have a solution. We can manufacture and supply true curves or facetted coping in horizontal or vertical. Most complex curves can be easily achieved.

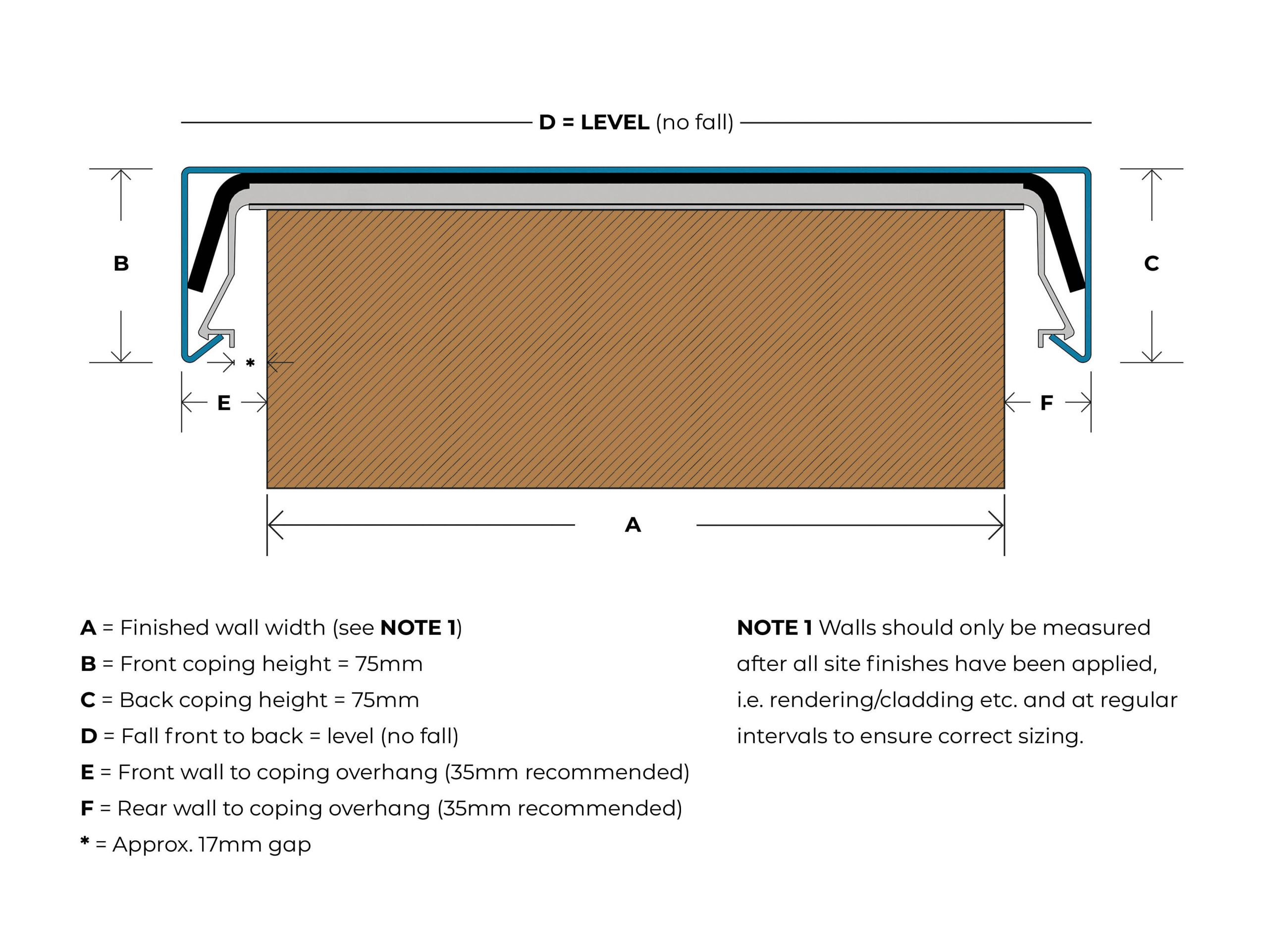

Sizing of Click-Fix Coping

Ali-Fabs Click-Fix Coping is manufactured to a fixed profile front and rear dimension, as detailed, and is made to suit wall widths of between 100mm – 450mm. Standard front and rear projection is 35mm, which allows for a ventilation gap of approximately 17mm. Please note: There is a risk of ponding with flat copings.

Curved or Radius Coping

Copings can be produced to a true curve to suit both internal and external situations.

Generally used on buildings up to four storeys

Tailor-made to fit wall widths up to 450mm

Wide range of colours and finishes

Typical components for coping & capping

Standard dimensional details available on request.
