Crest Coping

Crest aluminium roof coping is suitable for all applications

Crest roof coping is a highly engineered aluminium product, manufactured with concealed brackets spaced at 750mm intervals for strength and rigidity. Our Crest Coping Systems are manufactured with integral fall and is suitable for high-rise roofs where weather considerations with long-term performance is paramount. This highly adaptable aluminium roof wall coping is suitable for both high and low-rise buildings thanks to its mechanically fixed concealed bracket system. It offers a robust performance whilst maintaining clean, unobtrusive lines to parapet walls, flat and pitched roofs. All copings are made to suit individual project requirements and are available for quick delivery. Complete system with fully fabricated fittings available also lightweight making fitting easier.

Bespoke Profile Coping

Our special bespoke coping can be pressed, fabricated and welded to form purpose-made coping in a variety of unique shapes and sizes. Standard coping has a weather stuck top and can also be made with a flat level or dual pitched top for ramped, pitched or verge walls.

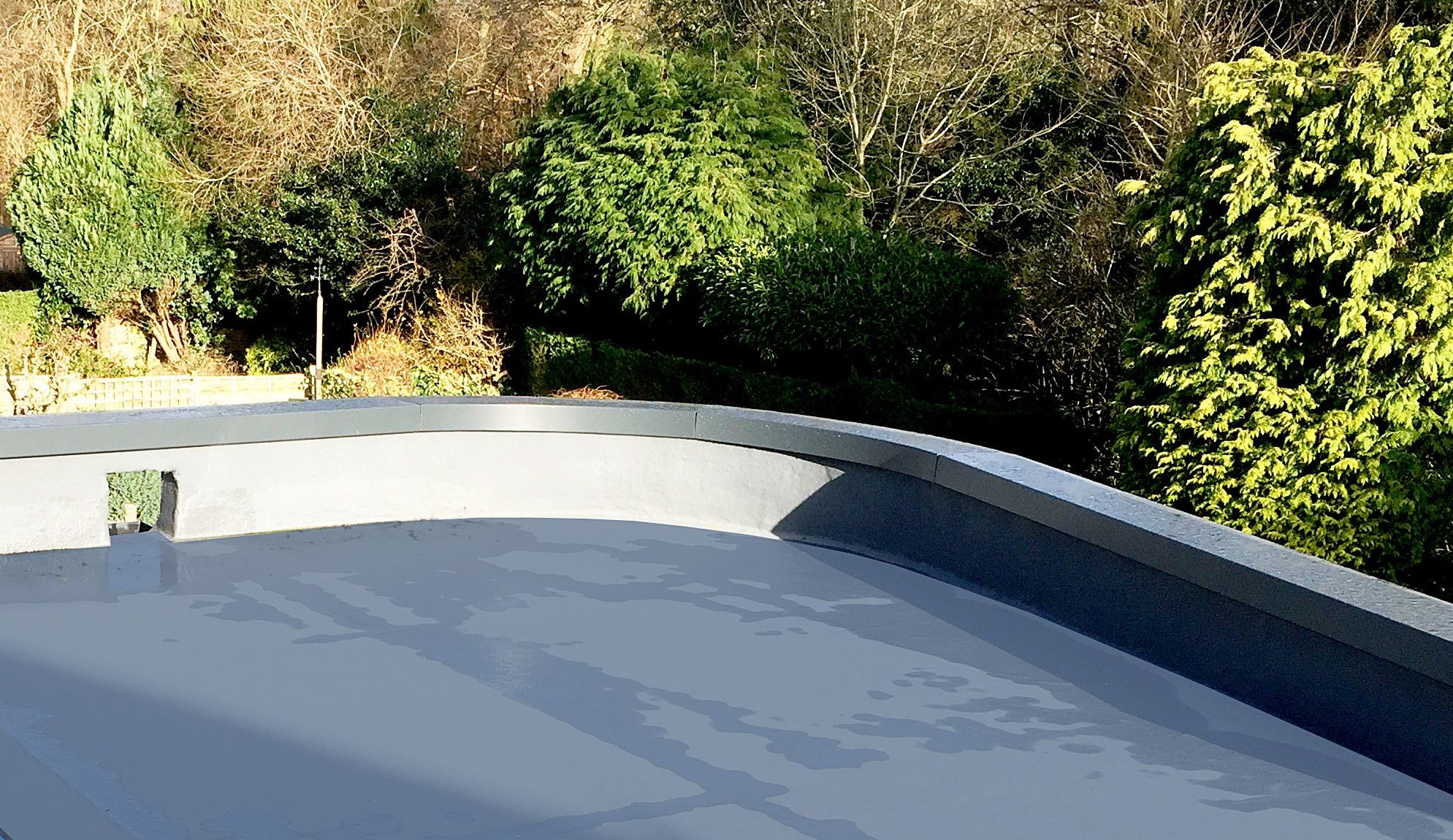

Curved Coping

Curved coping is our specialty. If your project requires coping that includes complex curves, we can produce coping to suit almost any radius, including true curves or facetted coping. Manufactured on site in Shropshire, our technical designers will work with you to make the perfect curve.

Our Aluminium Coping is available in a wide range of colours and finishes, including RAL and BS colours, heritage textured finish, metallic and anodised. We can source any colour to colour match your project or we also supply capping uncoated in the standard mill finish if required.

Downloads for Aluminium Crest Coping

• Suitable for wall widths up to 1200mm
• Manufactured from 2mm or 3mm thick marine grade aluminium

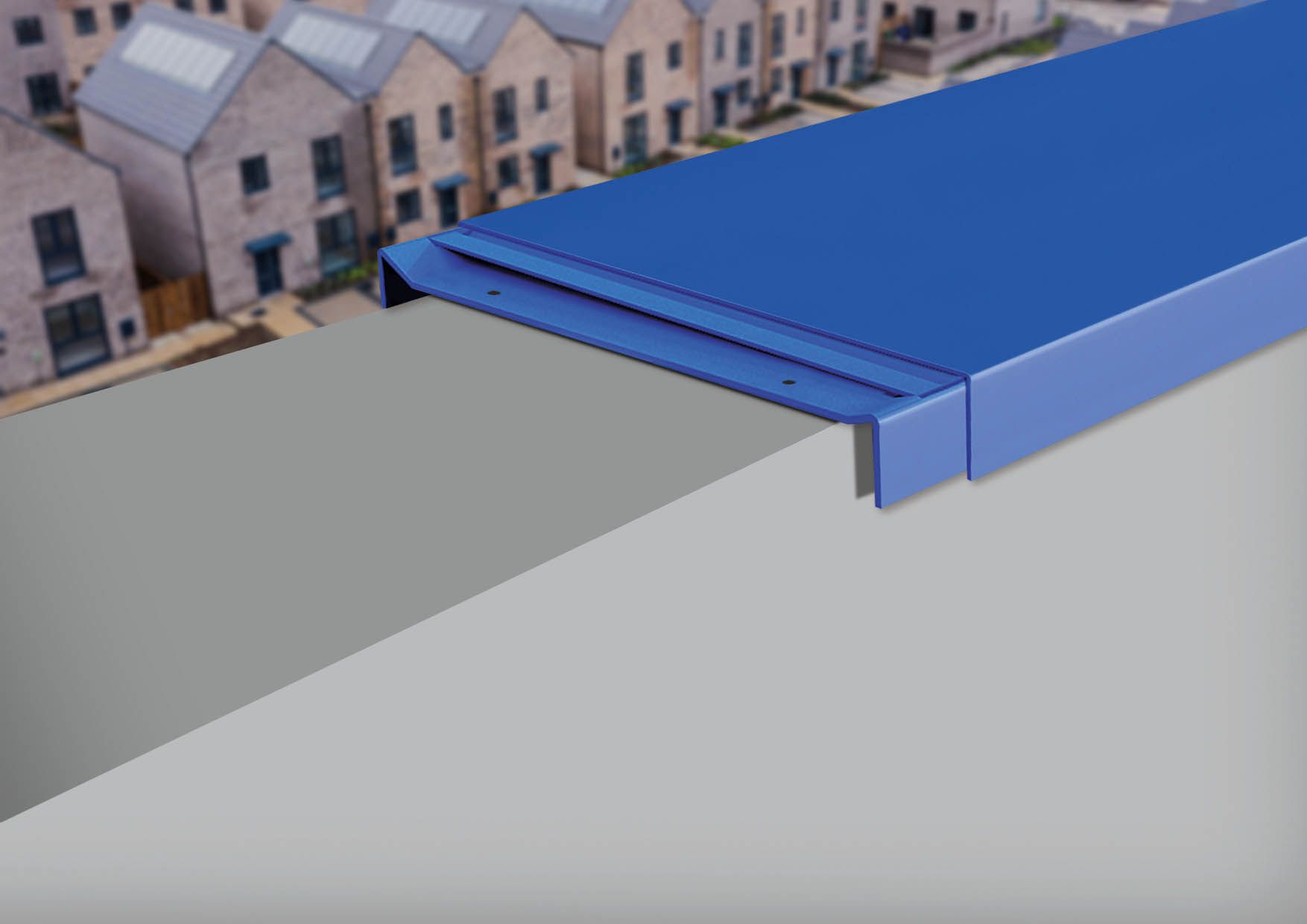

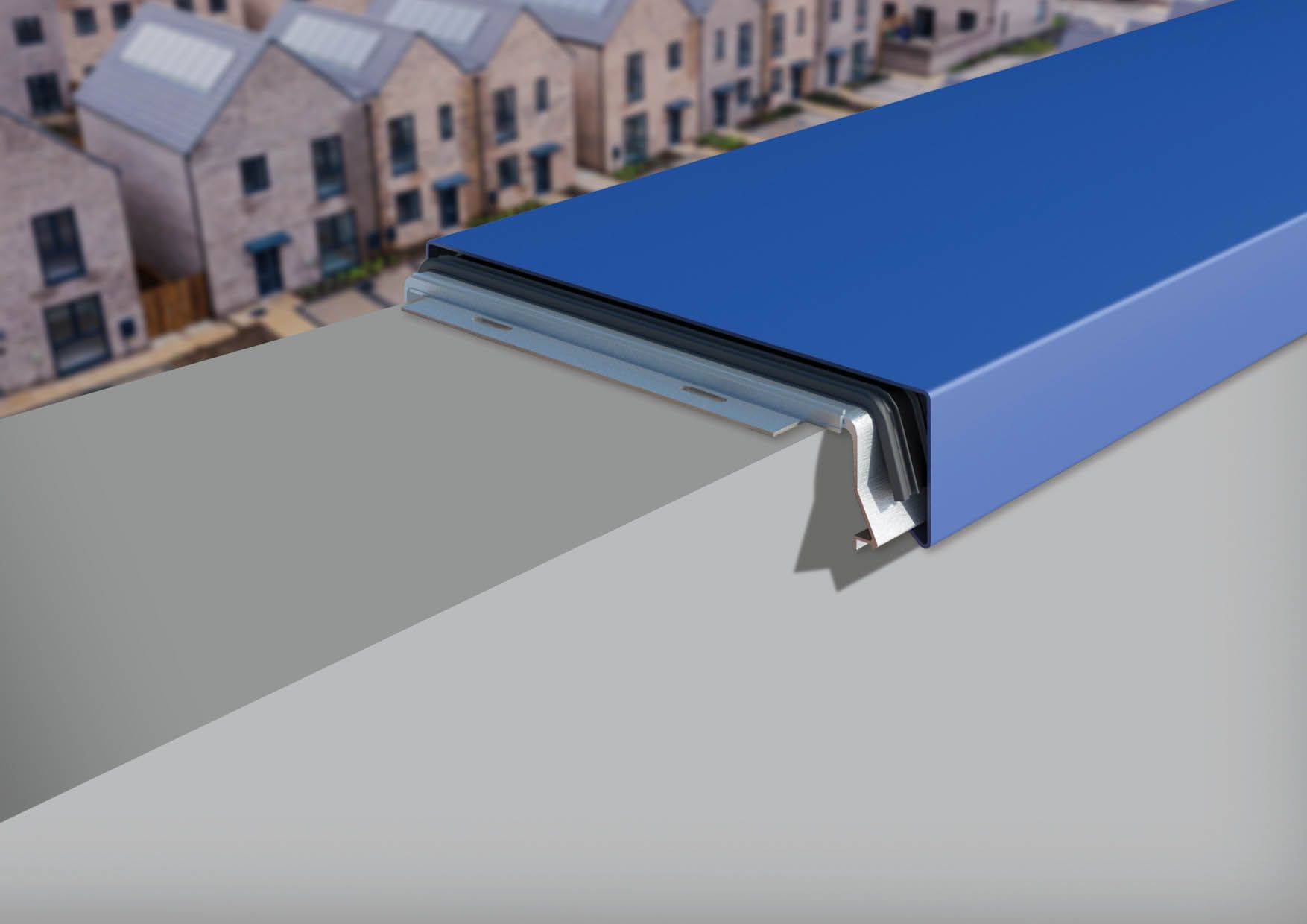

• Supplied complete with concealed fixing bracket at 750mm intervals
• High quality engineered fixing bracket 4mm thick with integral 10mm fall (20mm on walls over 550mm wide) for easy installation

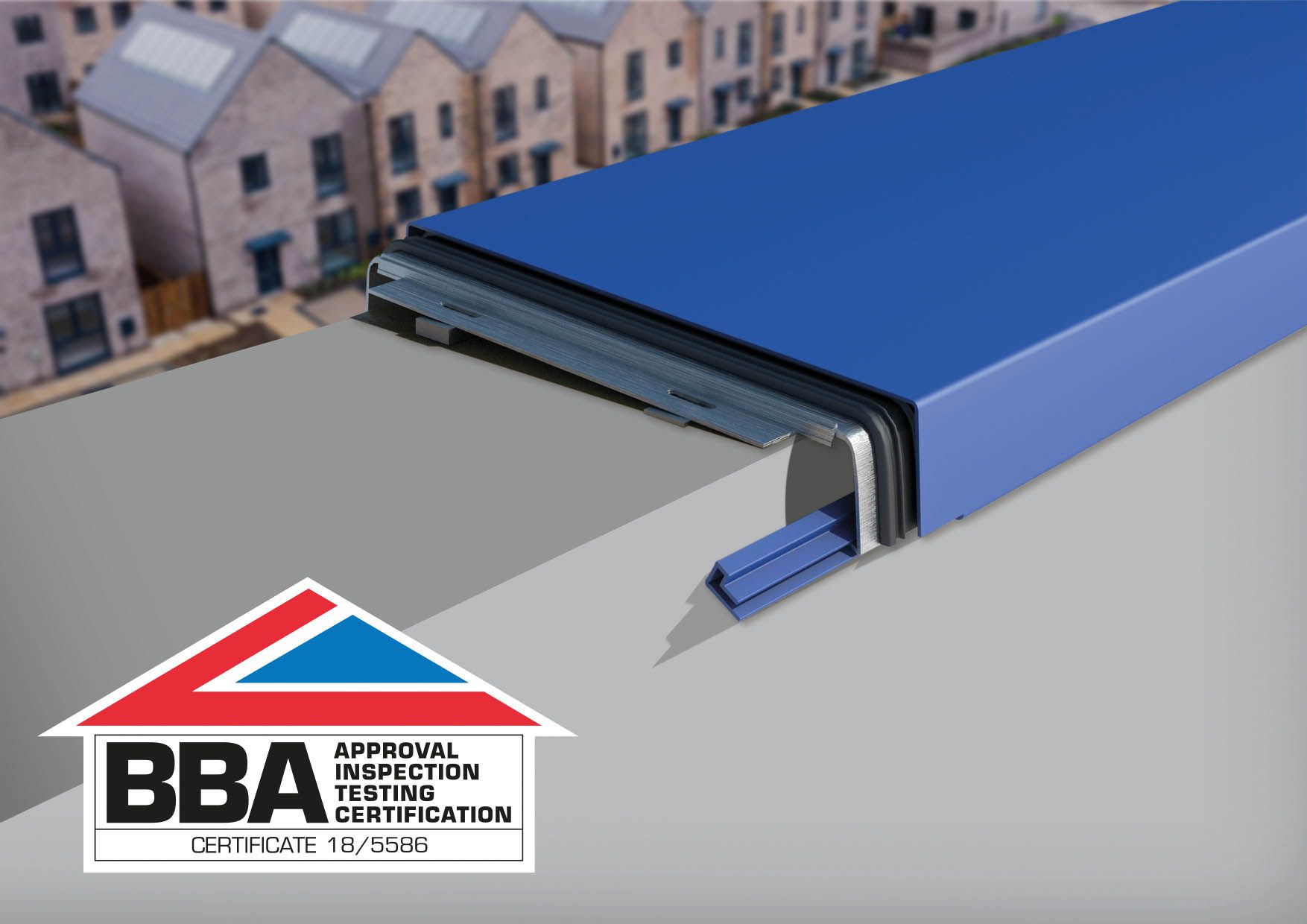

• Double width jointer bracket with integral V-DRIP channel is supplied at each joint for complete weatherproofing integrity

If you would like technical advice or pricing information for this product, click on the button below for our contacts.

Download

Shape and Size

Special profiles can be made e.g. vertical or with raked legs. Supplied in standard lengths of 3m. When specifying the total wall width including any finishes, rendering, asphalt or flashings must be given.

Accessories

Purpose made fittings are supplied for each installation and may include 60 degree and irregular corners, stop ends, upstands, T junctions and column caps. All are mitred and welded to suit (welds left undressed as standard). Special fittings for structural movement joints can also be supplied.

Environmentally Friendly

Aluminium wall coping is the most abundant metal in nature and over 90% of the aluminium we source is from recycled sources. This, combined with our aluminium copings being 100% recyclable make it the responsible, eco-friendly choice for wall copings.

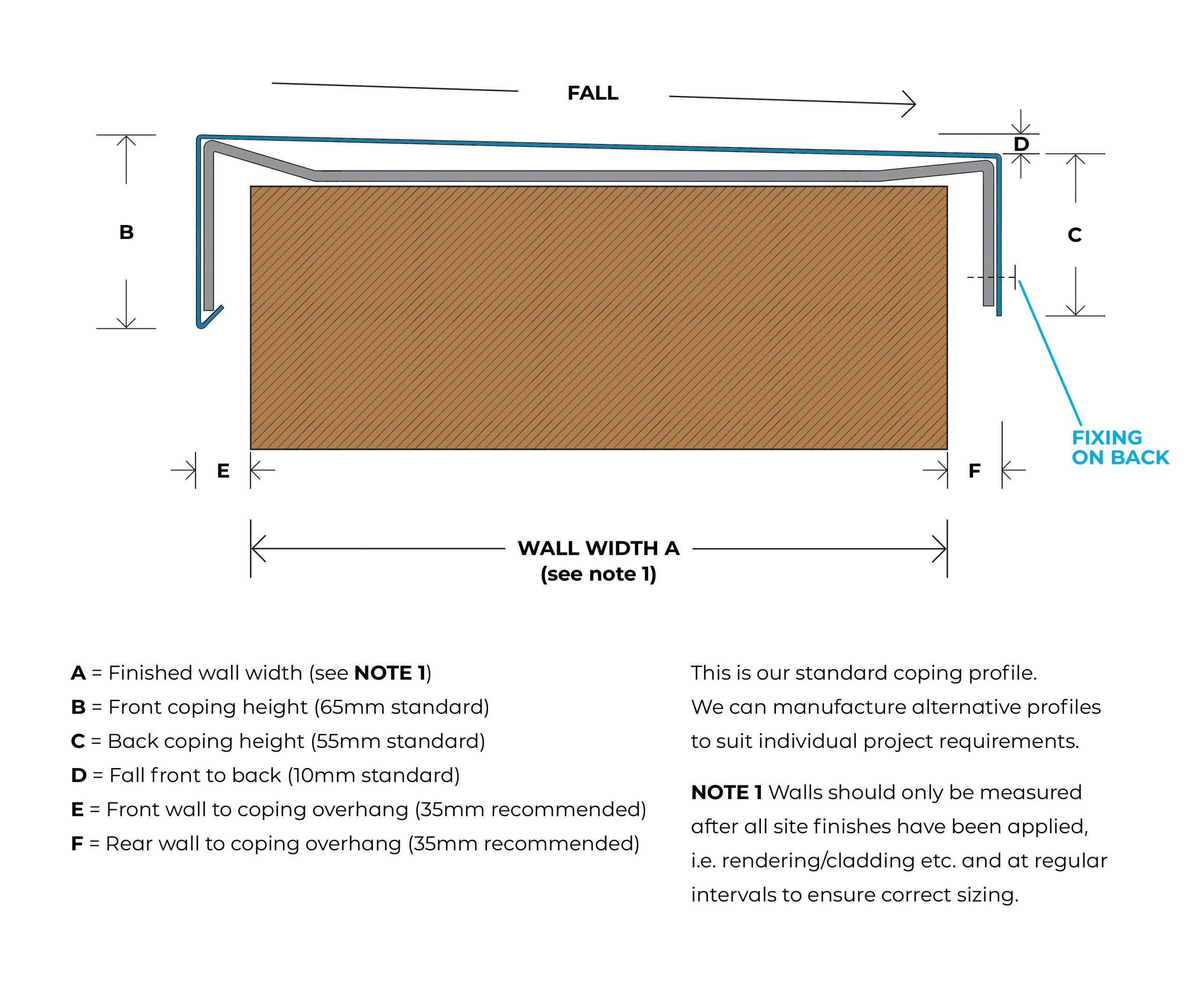

Sizing of Standard Coping

The standard dimension details shown can be used as a guide, please note that any configuration can be produced to suit individual project requirements.

Coping Girth

Equals wall width (A) plus 200mm providing standard front (E) and back (F) dimensions.

Curved or Radius Coping

Copings can be produced to a true curve to suit both internal and external situations.

Suitable for buildings of any height

Tailor-made to fit wall widths up to 2.8m

A wide range of colours and finishes

Typical components for coping & capping

Standard dimensional details available on request.
